SM 705
Automatic Nail Head Setting Machine
* Can be used with especially shaped eyelet.
* Channel is optional regardless of size.


* A single machine capable of handling 3 kinds of channels (3 kinds of sizes).
* Very efficient and can be easily operated with its automatic/manual shifting and easy adjustment of work speed.
* Designed small and light allowing easy moving and working in small space.
* Applicable eyelet: 3.0-8.0 mm (standard size: 4.0 mm)
* Air pressure: 5-6 kg/§˛
* Power: 220 V. 1P (50/60 HZ)
* Dimensions: 550 mm * 550 mm * 1,300 mm
* Weight: 47 kg

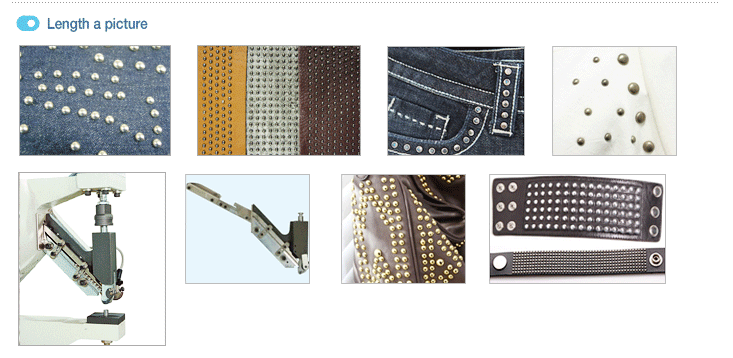

* Applications: womenĄŻs clothes, underwear, childrenĄŻ clothes, embroidered label, T-shirt, jeans, belt, bag, cap,
* accessories, shoes, etc.

SEUNGMIN INDUSTRIAL CO., LTD. 344-4, Gyomun-dong, Guri-si, Gyeonggido.
TEL: +82-31-562-8400 FAX: +82-31-562-8401
